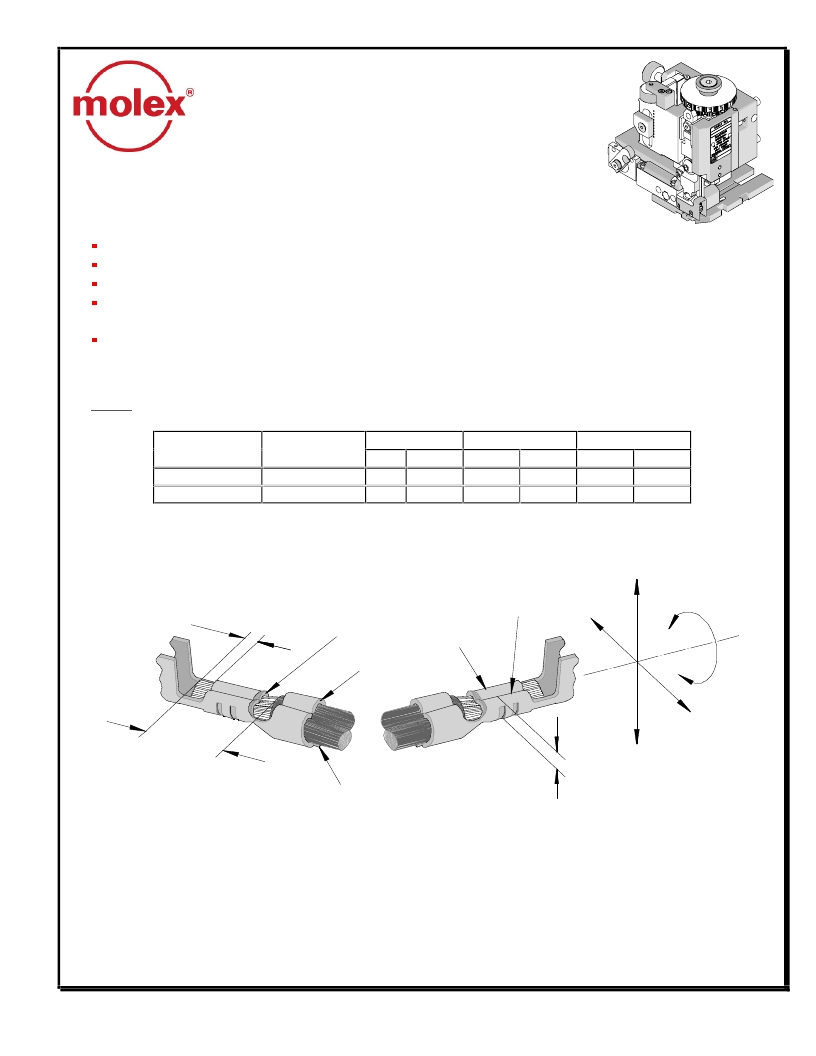

Mini-Mac Applicator for 2.00mm (.079") Diameter Pin and Socket Terminals
Mini-Mac Applicator
Specification Sheet
Order No. 63892-3000
FEATURES
Directly adapts to most automatic wire processing machines
Applicator designed to industry standard mounting and shut height 135.80mm (5.346")
Quick set-up time; plus the crimp height, track and feed adjustments can be set without removing the applicator from the press
Fine adjustment allows users to achieve target with little effort by adjusting in increments of .015mm (.0006") for conductor crimp
height and .063mm (.0025") for insulation height
Independent adjustment rings allow users to quickly adjust the conductor or insulation crimp height without affecting each other.
SCOPE
Products: 2.00mm (.079") Diameter Pin and Socket Terminals, 14-20 AWG.
Terminal Series No.
35727
35728
Terminal Order No
35727-0201
35728-0201
Wire Size
AWG mm2
14-20 2.00-.050
14-20 2.00-.050
Insulation Diameter
mm In.
1.90-3.40 .075-.134
1.90-3.40 .075-.134
Strip Length
mm In.
4.70-5.40 .185-.212
4.70-5.40 .185-.212
DEFINITION OF TERMS
BEND UP
BRUSH
BELL
MOUTH
CONDUCTOR
CRIMP
SEAM
ROLLING
INSULATION
CRIMP
STRIP
LENGTH
CUT-OFF
TAB
CRIMP HEIGHT
BEND
DOWN
TWISTING
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
Doc No. ATS-638923000
Revision: A
Release Date: 02-12-07
Revision Date: 02-12-07
UNCONTROLLED COPY
Page 1 of 5
